LUOYANG SANWU CABLE CO.,LTD.
Professional Cable and Conductor Manufacturer

|
| Place of Origin: | Henan |
| Brand Name: | Sanwu |
| Certification: | ISO CCC |
| Model Number: | Acsr Aac Aaac Conductors |
| Minimum Order Quantity: | 1000M |
|---|---|
| Price: | Negotiate |
| Packaging Details: | wooden drum |
| Delivery Time: | 1-15days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 tons per day |
| Name: | Acsr Aac Aaac Conductors | Conductor: | Aluminum Steel |
|---|---|---|---|
| Insulation: | Bare | Valtage: | 0.6/1 Kv |
| Standard: | ASTM | Size: | 336.4 Mcm |
| Highlight: | aluminium conductor cable 1 kv,ASTM aluminium conductor cable,ASTM aac conductor |
||

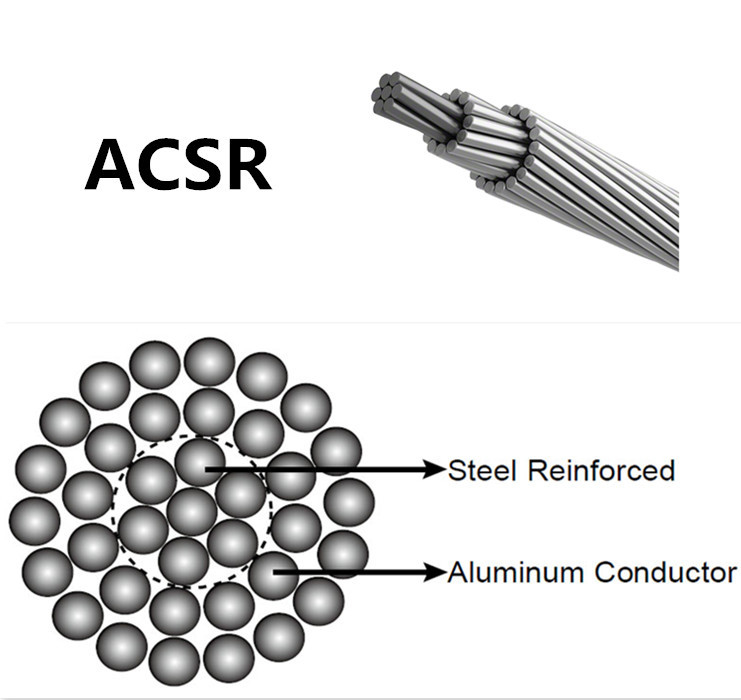

ASTM Aluminium Conductor Cable Acsr Aac Aaac Conductors
Application:
Conductor (AAC and ACSR) have been widely used in power transmission lines with various voltage, because they have such good characteristics as simple structure, convenient installation and maintenance, low cost and large transmission capacity.
Specifications:
(ACSR)
B-341 Aluminum-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)
B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)
B-500 Zinc Coated and Aluminum Coated Stranded Steel Core for Aluminum Conductors, Steel Reinforced (ACSR)
Material Standard:
1) The hard aluminum conductor used for AAC and ACSR conforms to the standard GB/T 17048-1997 (equivalent to IEC 60889:1987)
2) The zinc coated steel wire used for ACSR confirms to IEC 60888:1987
3) Production can be arranged according to customers' requirement such as material standard etc.
4) We can also produce products according to the Standard of BS215, ASTM B232, and DIN48204.
| ACSR ASTM Technical Datasheet | ||||||||||
| Code | Size | Section | Stranding | Diameter | Total Weight |
Rated Strength |
Maximum Resisitance @20°C |
|||
| Al | Total | Al | Steel | Cable | Steel | |||||
| AWG or MCM |
mm² | mm | mm | kg/km | kg | Ω/km | ||||
| Wren | 8 | 8.37 | 9.81 | 6×1.33 | 1×1.33 | 3.99 | 1.33 | 33.8 | 340 | 3.4017 |
| Turkey | 6 | 13.3 | 15.48 | 6×1.68 | 1×1.68 | 5.03 | 1.68 | 53.7 | 540 | 2.1135 |
| Swan | 4 | 21.15 | 24.71 | 6×2.12 | 1×2.12 | 6.35 | 2.12 | 85.4 | 846 | 1.3278 |
| Swanate | 4 | 21.15 | 26.52 | 7×1.96 | 1×2.61 | 6.53 | 2.61 | 99.7 | 1067 | 1.3133 |
| Sparrow | 2 | 33.62 | 39.23 | 6×2.67 | 1×2.67 | 8.03 | 2.67 | 136 | 1289 | 0.8343 |
| Sparate | 2 | 33.62 | 42.13 | 7×2.47 | 1×3.30 | 8.26 | 3.3 | 159 | 1650 | 0.8251 |
| Robin | 1 | 42.41 | 49.48 | 6×3.00 | 1×3.00 | 9.02 | 3 | 171 | 1612 | 0.6621 |
| Raven | 1/0 | 53.51 | 62.39 | 6×3.37 | 1×3.37 | 10.11 | 3.37 | 216 | 1987 | 0.5243 |
| Quail | 2/0 | 67.44 | 78.65 | 6×3.78 | 1×3.78 | 11.35 | 3.78 | 273 | 2401 | 0.416 |
| Pigeon | 3/0 | 85.02 | 99.23 | 6×4.25 | 1×4.25 | 12.75 | 4.25 | 344 | 3006 | 0.3304 |
| Penguin | 4/0 | 107 | 125 | 6×4.77 | 1×4.77 | 14.3 | 4.77 | 433 | 3787 | 0.2618 |
| Owl | 266.8 | 135 | 153 | 6×5.36 | 7×1.79 | 16.09 | 5.37 | 507 | 4330 | 0.2109 |
| Waxwing | 266.8 | 135 | 143 | 18×3.09 | 1×3.09 | 15.47 | 3.09 | 431 | 3117 | 0.2119 |
| Partridge | 266.8 | 135 | 157 | 26×2.57 | 7×2.00 | 16.31 | 5.98 | 547 | 5113 | 0.21 |
| Oatrich | 300 | 152 | 177 | 26×2.73 | 7×2.12 | 17.27 | 6.36 | 614 | 5755 | 0.1867 |
| Piper | 300 | 152 | 188 | 30×2.54 | 7×2.54 | 17.78 | 7.62 | 697 | 7000 | 0.1902 |
| Merlin | 336.4 | 171 | 180 | 18×3.47 | 1×3.47 | 17.37 | 3.47 | 544 | 3931 | 0.168 |
| Linnet | 336.4 | 171 | 198 | 26×2.89 | 7×2.25 | 18.31 | 6.74 | 689 | 6730 | 0.1663 |
| Oriole | 336.4 | 171 | 210 | 30×2.69 | 7×2.69 | 18.82 | 8.07 | 784 | 7865 | 0.1654 |
| Chickadee | 397.5 | 201 | 213 | 18×3.77 | 1×3.77 | 18.87 | 3.77 | 642 | 4499 | 0.1421 |
| Ibis | 397.5 | 201 | 234 | 26×3.14 | 7×2.44 | 19.89 | 7.32 | 814 | 7488 | 0.1411 |
| Lark | 397.5 | 201 | 248 | 30×2.92 | 7×2.92 | 20.47 | 8.77 | 927 | 9202 | 0.1401 |
| Pelican | 477 | 242 | 255 | 18×4.14 | 1×4.14 | 20.68 | 4.14 | 771 | 5347 | 0.1184 |
| Flicker | 477 | 242 | 273 | 24×3.58 | 7×2.39 | 21.49 | 7.16 | 914 | 7790 | 0.1178 |
| Hawk | 477 | 242 | 281 | 26×3.44 | 7×2.67 | 21.79 | 8.03 | 977 | 8880 | 0.1171 |
| Hen | 477 | 242 | 298 | 30×3.20 | 7×3.20 | 22.43 | 9.61 | 1112 | 10783 | 0.1165 |
| Heron | 500 | 253 | 312 | 30×3.28 | 7×3.28 | 22.96 | 9.84 | 1162 | 11090 | 0.1141 |
| Osprey | 556.5 | 282 | 298 | 18×4.47 | 1×4.47 | 22.33 | 4.47 | 899 | 6233 | 0.1014 |
| Parakeet | 556.5 | 282 | 319 | 24×3.87 | 7×2.58 | 23.22 | 7.73 | 1067 | 8999 | 0.101 |
| Dove | 556.5 | 282 | 328 | 26×3.72 | 7×2.89 | 23.55 | 8.66 | 1140 | 10019 | 0.1007 |
| Eagle | 556.5 | 282 | 348 | 30×3.46 | 7×3.46 | 24.21 | 10.39 | 1298 | 12606 | 0.1001 |
| Peacock | 605 | 307 | 346 | 24×4.03 | 7×2.69 | 24.21 | 8.03 | 1161 | 9771 | 0.0928 |
| Squab | 605 | 307 | 357 | 26×3.87 | 7×3.01 | 24.54 | 9.04 | 1240 | 11018 | 0.0925 |
| Teal | 605 | 307 | 376 | 30×3.61 | 19×2.16 | 25.25 | 10.82 | 1398 | 13567 | 0.0919 |
| Duck | 605 | 307 | 346 | 54×2.69 | 7×2.69 | 24.21 | 8.07 | 1158 | 10210 | 0.0944 |
| Kingbird | 636 | 322 | 340 | 18×4.78 | 1×4.78 | 23.88 | 4.78 | 1028 | 7128 | 0.0895 |
| Rook | 636 | 322 | 364 | 24×4.14 | 7×2.76 | 24.82 | 8.28 | 1219 | 10298 | 0.0883 |
| Grosbeak | 636 | 322 | 375 | 26×3.97 | 7×3.09 | 25.15 | 9.27 | 1302 | 11427 | 0.0897 |
| Egret | 636 | 322 | 396 | 30×3.70 | 19×2.22 | 25.88 | 11.1 | 1471 | 14302 | 0.0876 |
| Goose | 636 | 322 | 364 | 54×2.76 | 7×2.76 | 24.84 | 8.28 | 1218 | 10730 | 0.0898 |
| Flamingo | 666.6 | 338 | 382 | 24×4.23 | 7×2.82 | 15.4 | 8.46 | 1278 | 10751 | 0.0843 |
| Gull | 666.6 | 338 | 382 | 54×2.82 | 7×2.82 | 25.38 | 8.46 | 1276 | 11140 | 0.0587 |
| Starling | 715.5 | 363 | 422 | 26×4.21 | 7×3.28 | 26.7 | 9.83 | 1465 | 12865 | 0.0781 |
| Redwing | 715.5 | 363 | 445 | 30×3.92 | 19×2.35 | 27.46 | 11.76 | 1653 | 15649 | 0.0778 |
| Cuckoo | 795 | 403 | 455 | 24×4.62 | 7×3.08 | 27.74 | 9.25 | 1524 | 12649 | 0.0719 |
