LUOYANG SANWU CABLE CO.,LTD.
Professional Cable and Conductor Manufacturer

|
| Place of Origin: | Henan |
| Brand Name: | Sanwu |
| Certification: | ISO CCC |
| Model Number: | Overhead Aerial Cable |
| Minimum Order Quantity: | 1000M |
|---|---|
| Price: | USD 0.2-20 per meter |
| Packaging Details: | wooden drums |
| Delivery Time: | 1-15days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 tons per day |
| Conductor: | Aluminum Conductor | Insulation: | XLPE/pvc |
|---|---|---|---|
| Rated Voltage: | 0.6-1kv | Application: | Power Distribution Lines |
| Service Life: | 70 Years | Warranty: | 2 Year |
| Color: | Black | Sheath: | PVC |
| Package: | 0.6/1kv | ||
| Highlight: | Urban Areas Overhead Aerial Cable,PVC Sheathed Overhead Aerial Cable,0.6/1kv Overhead Aerial Cable |
||

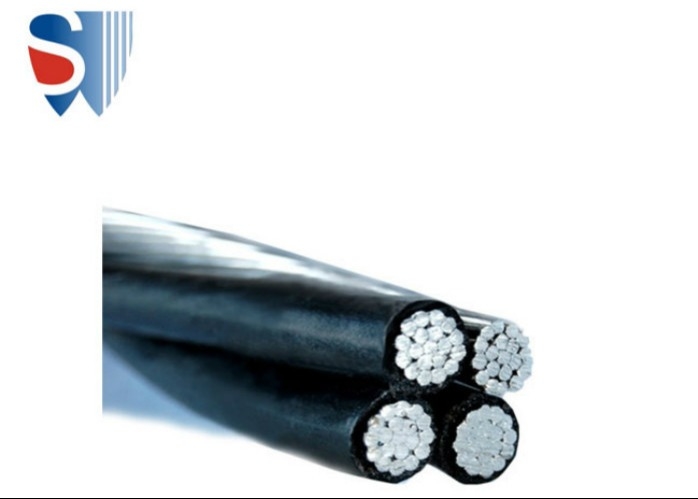

0.6/1kv PVC Sheathed Overhead Aerial Cable For Urban Areas
Advantages
In comparison to bare overhead distribution lines, AB Cables have very high reliability during the services. As the power and neutral conductors are insulated with the best dielectric material, resulting in the following advantages:
Less fault rate on account of good protection against line and ground fault by high winds or falling trees or birds especially in hilly areas & forests as encountered in Rural distribution networks
High Insulation resistance to earth in all polluted atmosphere. Negligible currents and low losses
Standard
NFC 33209 IEC ASTM
|
SPEC
mm2 |
Conductor structure |
Insulation
Material |
Insulation thickness (mm) |
Approx overall Diameter(mm) |
Approx weight
(kg/km) |
||
|
Phase (compacted A)
Phase (compacted Al) |
Neutral (alloy) | ||||||
| No./mm | No./mm | ||||||
| 1*16+1*16 | 7/1.72 | 7/1.72 |
XLPE Or |
1.2 | 12.5 | 110.1 | |
| 1*25+1*25 | 7/2.15 | 7/2.15 | 1.2 | 14.9 | 163.9 | ||
| 1*35+1*35 | 7/2.54 | 7/2.54 |
PVC or PE |
1.4 | 17.5 | 229.0 | |
| 1*50+1*50 | 7/2.92 | 7/2.92 | 1.4 | 20.1 | 300.0 | ||
| 1*70+1*70 | 19/2.15 | 19/2.15 | 1.4 | 23.6 | 423.2 | ||
| 1*95+1*95 | 19/2.54 | 19/2.54 | 1.6 | 27.6 | 585.4 | ||
| 2*16+1*16 | 7/1.72 | 7/1.72 | 1.2 | 14.2 | 175.8 | ||
| 2*25+1*25 | 7/2.15 | 7/2.15 | 1.2 | 16.7 | 258.4 | ||
| 2*35+1*35 | 7/2.54 | 7/2.54 | 1.4 | 19.7 | 361.2 | ||
| 2*50+1*50 | 7/2.92 | 7/2.92 | 1.4 | 22.5 | 472.1 | ||
| 2*70+1*70 | 19/2.15 | 19/2.15 | 1.4 | 26.1 | 658.3 | ||
| 2*95+1*95 | 19/2.54 | 19/2.54 | 1.6 | 30.5 | 908.2 | ||
| 3*16+1*16 | 7/1.72 | 7/1.72 | 1.2 | 16.3 | 241.5 | ||
| 3*25+1*25 | 7/2.15 | 7/2.15 | 1.2 | 19.1 | 353.6 | ||
| 3*35+1*35 | 7/2.54 | 7/2.54 | 1.4 | 22.5 | 493.5 | ||
| 3*50+1*50 | 7/2.92 | 7/2.92 | 1.4 | 25.7 | 644.1 | ||
| 3*70+1*70 | 19/2.15 | 19/2.15 | 1.4 | 29.7 | 895.2 | ||
| 3*95+1*95 | 19/2.54 | 19/2.54 | 1.6 | 34.6 | 1233.5 | ||
Packaging Details
Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.
Delivery Time
Generally it is 5-10 days if the goods are in stock,or it is 15.
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.L/C is also available.
