Aluminum Conductor LV ABC Cable XLPE PE LDPE PVC Insulated Overhead Duplex Triplex Quadruplex Service Drop Cable

Aluminum Conductor LV ABC Cable XLPE PE LDPE PVC Insulated Overhead Duplex Triplex Quadruplex Service Drop Cable

    Aluminium conductor cables have a wide range of practical applications across various industries, primarily due to their lightweight, cost-effectiveness, and good conductivity. Here are some key areas of application:
1. Power Distribution
    Aluminium cables are widely utilized in urban and rural distribution networks, suitable for both underground and overhead lines to meet various environmental needs.
2. Transportation
    In railway and metro systems, aluminium conductor cables are employed for power supply and signaling systems. Their lightweight nature helps reduce the load on tracks and supports.

Standard
ASTM, IEC, GB, NFC 33-209

A: Duplex Service Drop

B.Triplex Service Drop

C. Quadruplex Service Drop
Application
    Used to supply 3 phase power, usually from a pole- mounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts or less phase to phase and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulated conductors.
Construction
    Conductors are concentrically stranded, compressed 1350-H19 aluminum. Insulated with either polyethylene or XLP crosslinked polyethylene. Neutral messengers are concentrically stranded AAC/AAAC/ACSR. One conductor is manufactured with an extruded ridge for phase identification.

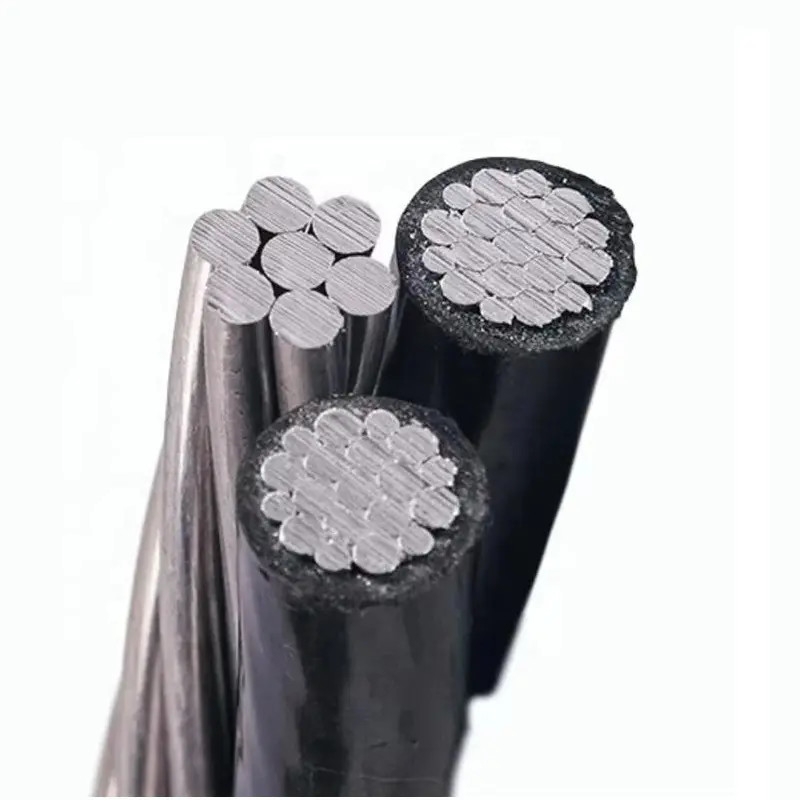

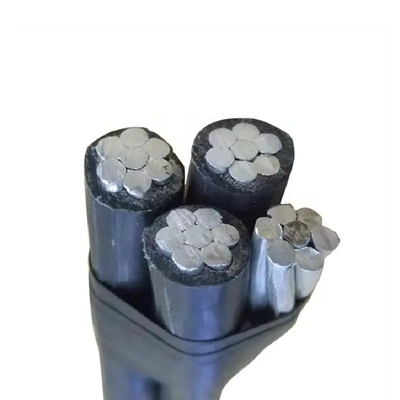

Product Pictures:

Applications:

    Aluminium conductor cables are widely used in various applications due to their lightweight, cost-effectiveness, and good conductivity. They are commonly employed in power transmission and distribution systems, facilitating the movement of electricity over long distances. In residential and commercial buildings, these cables serve as main supply lines and connections for large appliances. Additionally, they are integral to railway and metro systems for power supply and signaling. Aluminium conductor cables are also utilized in renewable energy projects, such as solar and wind installations, making them essential in both traditional and sustainable energy sectors.

Producing Process:

More Products:

Packing & Delivery:
Wooden drums with dimater 1.1m, 1.2m, 1.6m, 1.8m and 2.2m etc.;

Aluminium conductors are commonly wound onto wooden or steel reels, which provide protection during transport and handling.
20GP, 40GP and 40HQ containers

Customer Visit:

    All wires and cables are produced in strict accordance with EC, SAA CCC, ISO, ASTM, DIN, VED, JIS and other standard. As one manufacturer, here we can also provide customized services for various special types of cables according to customer needs.
    We always adheres to the enterprise spirit of "quality wins customers, reputation creates benefits", and sincerely welcomes friends from all over the world to visit our company and cooperate.
