Flexible ACAR Conductor For Wind Farms Aluminum-Zirconium -40°C To 120°C Range

Flexible ACAR Conductor for Wind Farms Aluminum-Zirconium -40°C to 120°C Range

ACAR Conductors meet international standards like IEC, ASTM, and BS, ensuring safety and reliability. These certifications make them suitable for global projects, from urban power grids to remote renewable energy installations.
Specification:

  1.Construction

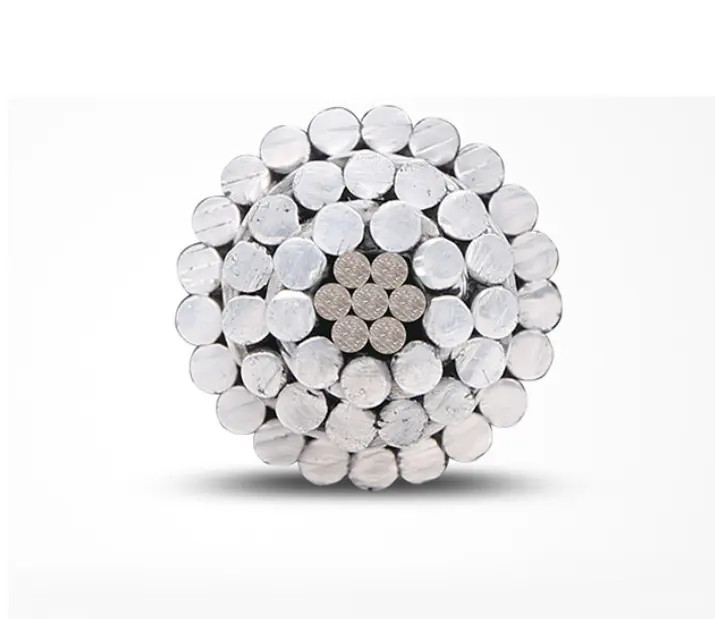

ACAR has aluminium 1350 H-19 wires concentrically stranded around a 6201-T81 aluminium alloy core. Typically, the 6201-T81 is the conductor core, but in certain designs, the 1350 H-19 and the 6201-T81 wires may be stranded in the same layer

  2.Part of ACAR(6201) conductors of ASTM sizes.

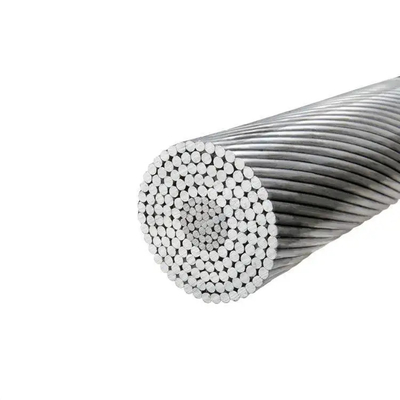

Product Picture:

Features:

1. ACAR offers excellent balance mechanical and electrical properties.

2.It has excellent corrosion resistance , owing to the compatible materials in the centre and the outer layers.

3.It is a compromise choice between AAC,ACSR,and AAAC.

4.It has 1350 designates grade of pure aluminium.

5. It has 6201 designates aluminium alloy grade.​

Applications:

   ACAR Conductors are used in high-voltage transmission networks to transport electricity over long distances with minimal losses. Their high conductivity and low sag characteristics make them ideal for such applications.

Advantages of ACAR:

ACAR (Aluminum Conductor Alloy Reinforced) is a specialized type of overhead power conductor that uses aluminum alloy strands for both the core and outer layers. This unique design offers several advantages, making it a preferred choice for various power transmission and distribution applications.

1. Superior Conductivity

2. High Strength-to-Weight Ratio

3. Excellent Corrosion Resistance

4. Low Sag Characteristics

5. Thermal Stability

6. Lightweight and Flexible

7. Cost-Effectiveness

8. Compatibility with Renewable Energy Systems

Producing Process:

More Products:

Packing & Delivery:

Wooden package optional:
Size: 0.5*0.5*0.5m 0.6*0.6*0.6m 0.7*0.7*0.7m 1.1*1.1*0.8m 2.2*2.2*1.8m
Or suitable meters according to your needs.

Customers Visit:

    All wires and cables are produced in strict accordance with EC, SAA CCC, ISO, ASTM, DIN, VED, JIS and other standard. As one manufacturer, here we can also provide customized services for various special types of cables according to customer needs.
    We always adheres to the enterprise spirit of "quality wins customers, reputation creates benefits", and sincerely welcomes friends from all over the world to visit our company and cooperate.

About Us:

    Luoyang Sanwu Cable Co., Ltd., with registered capital of 100 million RMB, is a high-tech development company for scientific research, industry producing and trading , offering a diverse selection of quality wires and cables to industrial customers in 33 countries worldwide. The leading products are ACSR, overhead conductor, AAAC, AAC, power cable, BLXY, home-used wire and so on.

FAQ:

Q: Are you trading company or manufacturer ?
A: We have our own factory and trading company, our factory have more than 10 years production experience.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, and it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.L/C is also available.

Q:Have you ever supplied cables to our country ?

A: Cables have been supplied to many countries across the world such as USA, Australia, Switzerland, Singapore, Sri Lanka, the Philippines, Mongolia, UAE, Yemen, Iran, Iraq, Nigeria, Egypt, Lesotho, Cameroon, etc.
